Objective: Populate a csv file to an internal and external Hive table in HDInsight.

See my blog post on create hive tables Creating Internal and External Hive Tables in HDInsight

I have obtained a 1.4GB csv file on US city crimes data from https://catalog.data.gov/dataset/crimes-2001-to-present-398a4

My HDInsight cluster is configured to use Azure Data Lake store as its primary data storage.

1. Go to Azure Data Lake Store > Data Explorer

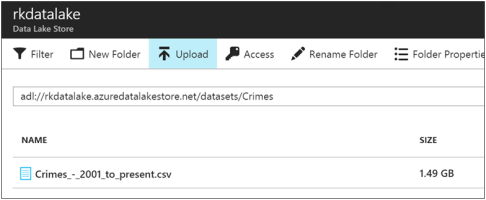

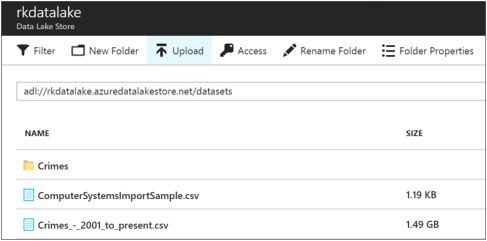

2. Upload csv file twice in 2 separate locations.
   Upload to adl://rkdatalake.azuredatalakestore.net/datasets for internal hive table and adl://rkdatalake.azuredatalakestore.net/datasets/crimes for external hive table. I will explain why further.


3. In Visual Studio with Azure Data Lake Tools plugin, open an existing or new Hive project.
4. Execute script:

   LOAD DATA INPATH 'adl://rkdatalake.azuredatalakestore.net/datasets/Crimes_-_2001_to_present.csv' OVERWRITE INTO TABLE crimes;

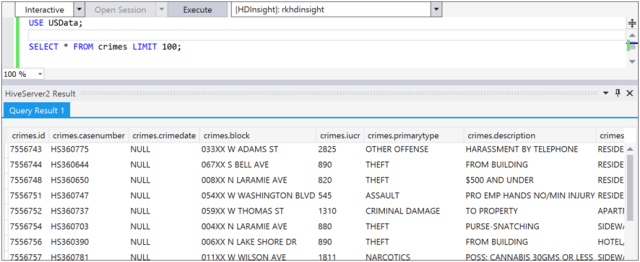

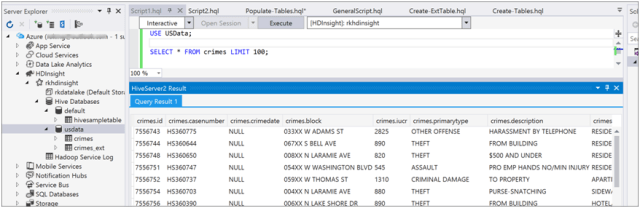

5. Query crimes table to test data load

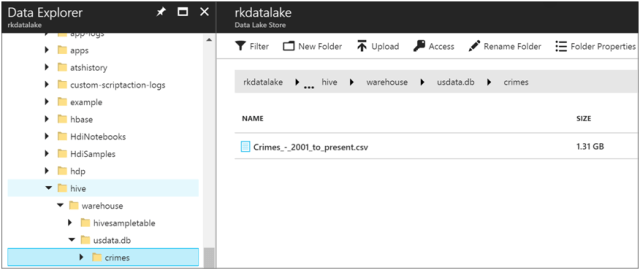

6. Go back to adl://rkdatalake.azuredatalakestore.net/datasets and you will notice that the csv file is no longer present. It has been moved to the hive/warehouse.

7. Execute Script to set the external data location.

   ALTER TABLE Crimes_ext SET LOCATION 'adl://rkdatalake.azuredatalakestore.net/datasets/Crimes/'


   I found that the location must be a folder containing the csv file(s) and not a specific csv file path.

8. Execute Script to query external table:

9. In contrast to the internal crimes table, the crimes_ext under hive\warehous does not contain any data files. This is to confirm this is by design of an external table


I have demonstrated the differences in populating data for an internal and an external hive table. For a Q&A discussion between the differences read http://stackoverflow.com/questions/17038414/difference-between-hive-internal-tables-and-external-tables.

In my following article The effects of Dropping Hive Tables, I will show the effects of dropping each type of hive table.
