Azure AD Application Proxy with a Claims Aware Web App – Part 5

Objective: Configure Single Sign-On with KCD and synchronization with Azure AD Connect

Reference: Kerberos Constrained Delegation for single sign-on to your apps with Application Proxy

To support single sign-on, configure with Integrated Windows Authentication mode

In the Azure Portal, go to Azure AD > Enterprise Applications > click on your Enterprise Application > click Single sign-on > Select Mode Integrated Windows Authentication

For Internal Application SPN, enter http/ (Go to blog Part 2 for KCD setup)azure-ad-azure-application-proxy-with-share-point-server-2013-2016-blog-part-5.1pngClick Save

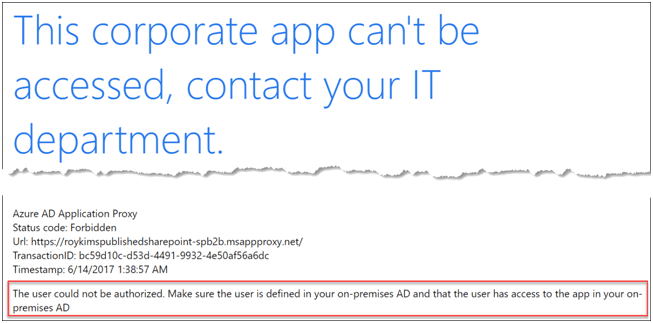

By visiting the SharePoint application again and attempting to login, the browser displays the error message:azure-ad-azure-application-proxy-with-share-point-server-2013-2016-blog-part-5.2pngThis is because the user does not exist in on-premises AD.

Let’s install Azure AD Connect in the on-premises environment to synchronize users from on-premises AD to Azure AD.

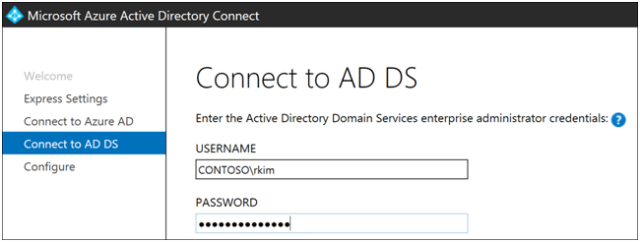

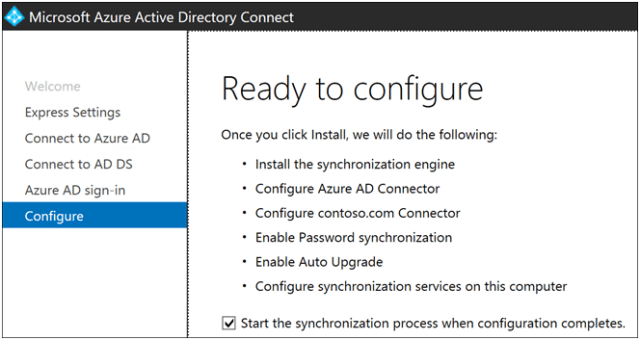

Download Azure AD Connect. For my lab environment and for simplicity, I installed it on the SP server. It is recommended to install on a dedicated server.
In the Azure AD Directory, add a domain that is the same as your on-premises environment that you own and can verify.


In my case, is the default domain that was provisioned with the SharePoint Non-HA Azure ARM template, I cannot own this public domain from any domain registrar, such as GoDaddy. Therefore I cannot verify in my Azure AD. Therefore, I will resort to the UPN as in my Azure AD. This will be sufficient for the purposes of this demo.


As a result of the Azure AD Sync, we can see users from the AD server. However, note that the on-premises AD user accounts end with rather than


Now you are one step closer to login with these accounts given that they have permissions to the SharePoint site. The next blog will finish the configuration and test a successful login scenario to the published SharePoint site.

Next: Azure AD Azure Application Proxy with SharePoint Server 2013/2016 Blog Part 6
